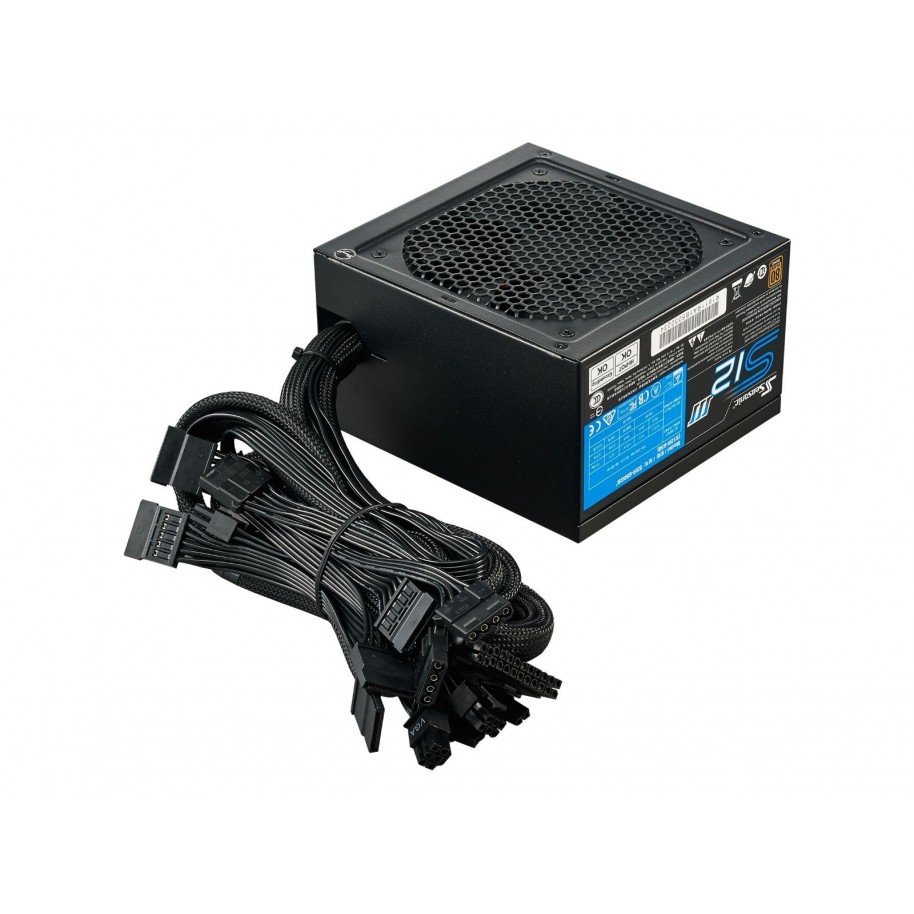

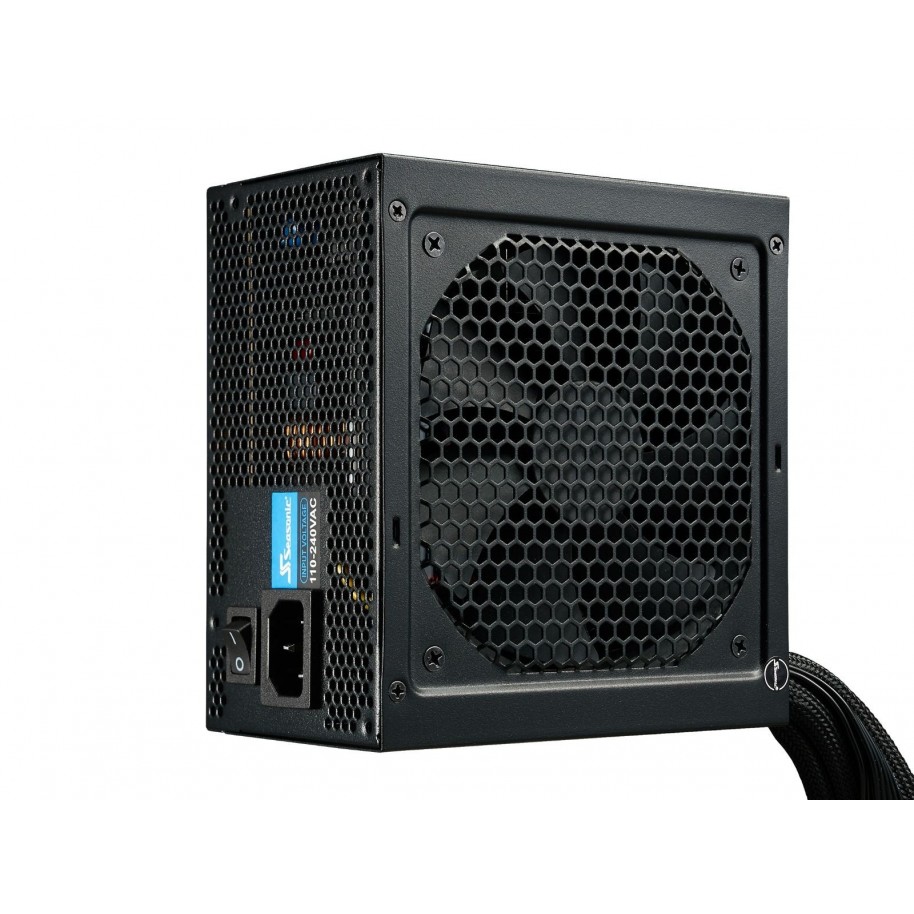

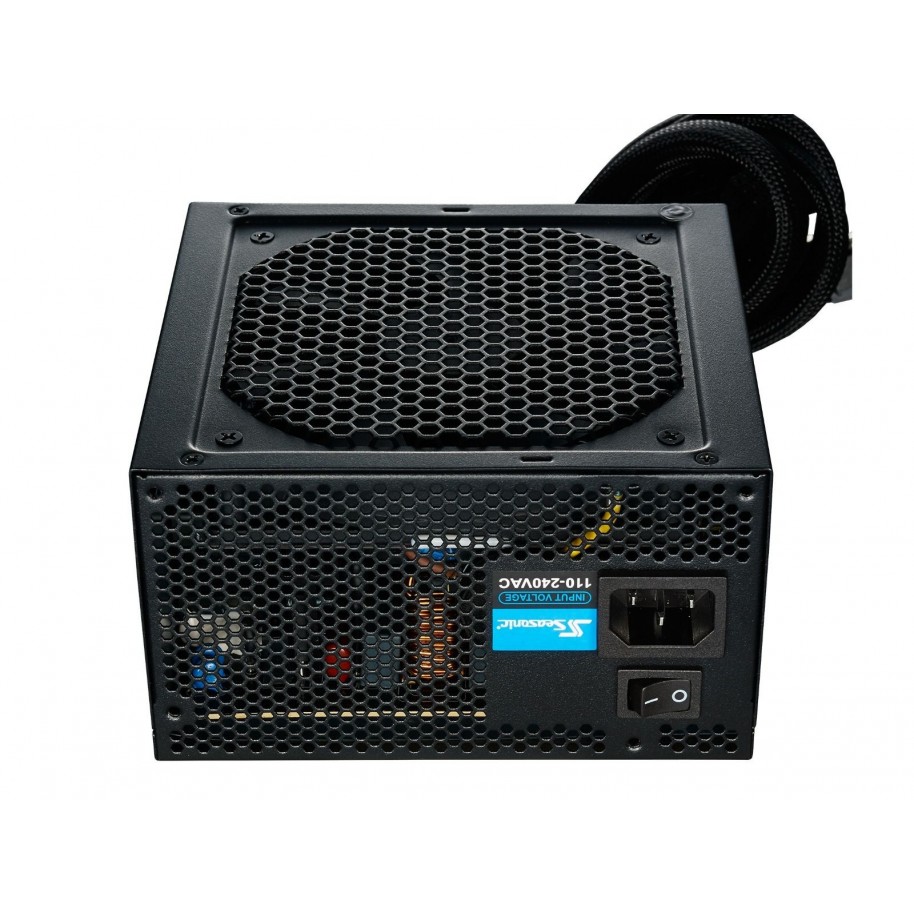

Fuente Pc Seasonic 650W Reales S12Iii-650 80+ Bronze Certificada Gamer

Referencia: 10803

Condición: Nuevo

ATX 12 V
Fixed cables
80 PLUS Bronze Certified
Dimensions: 140 mm (L) x 150 mm (W) x 86 mm (H)

Más detalles

1 Elemento artículos

Advertencia: ¡Últimos artículos en inventario!

Enviar a un amigo
Enviar a un amigo
Fuente Pc Seasonic 650W Reales S12Iii-650 80+ Bronze Certificada Gamer
ATX 12 V
Fixed cables
80 PLUS Bronze Certified
Dimensions: 140 mm (L) x 150 mm (W) x 86 mm (H)
Recipiente :
Nombre de tu amigo ^* :
E-mail de tu amigo ^* :
^* Campos obligatorios
total Cancelar
Imprimir

Más información

OVERVIEW

80 PLUS®BRONZE

The 80 PLUS® Bronze certification indicates that a high percentage of the electricity is converted into useful power, therefore there is less heat lost and more money saved on the electricity bill.

The 80 PLUS® Bronze certification guarantees greater than 82 %, 85 % and 82 % efficiency at 20 %, 50 % and 100 % operating loads, respectively. Sea Sonic’s Bronze Series is an economical choice with great performance and high built-in value.

S2FC - SMART AND SILENT FAN CONTROL

The intelligent thermal circuit feature is designed to find the optimal balance between the necessity to cool the components and the need to run the power supply in the most silent manner possible.

FEATURE SUMMARY

80 PLUS® Bronze certified
Fixed cables
Tight Voltage Regulation

S2FC - Smart and Silent Fan Control
5 years warranty

GALLERY

SPECIFICATIONS

SSR-650GB3

Technical Specifications
80PLUS®		Bronze
Form Factor		Intel ATX 12 V
Dimensions		140 mm (L) x 150 mm (W) x 86 mm (H)
Fan Information	Fan Size	120 mm
	Fan Control	Seasonic S2FC
	Fan Bearing	Sleeve bearing
	Life Expectancy	30,000 hours at 40 °C, 15 % - 65 % RH
Cable Information	Modularity	Fixed cable
Cable Information	Cable type	Flat black cables
Electrical Features	Operating Temperature	40 °C
	MTBF @ 25 °C, excl. fan	100,000 hours
	AC Input	Full Range
	Protection	OPP, OVP, UVP, SCP
Safety and Environmental	Safety and EMC	cTUVus, TUV, Gost-R, CB , BSMI, CCC, CE, FCC, C-tick
Safety and Environmental	Environmental Compliance	Energy Star, RoHS, WEEE, REACH
Warranty		5 Years

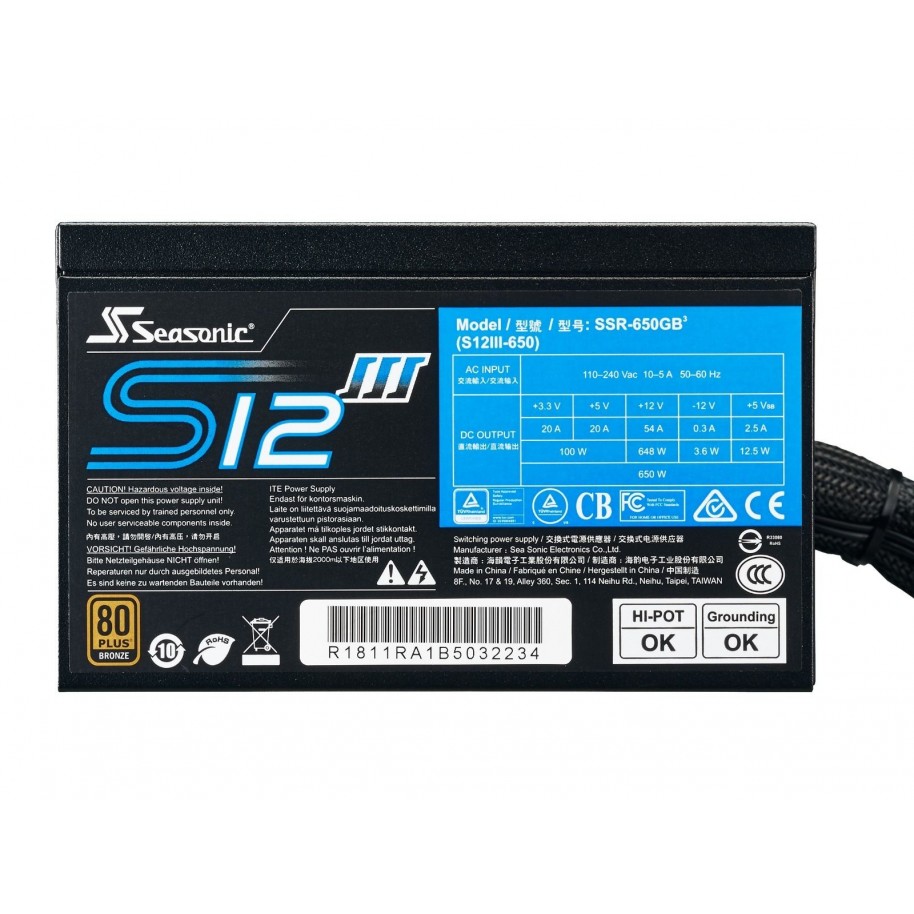

Power Output
AC Input	Voltage: 110 V - 240 V
	Current: 10 A - 5 A
	Frequency: 50 Hz - 60 Hz
DC Output	Rail	+3.3 V	+5 V	+12 V	-12 V	+5 VSB
	Maximum Power	20 A	20 A	54 A	0.3 A	2.5 A
	Maximum Power	100 W		648 W	3.6 W	12.5 W
	Total continuous power	650 W

CABLES

SSR-650GB3

Connector	Connector Count	Cable Length
Main Power (24/20 pins)	1	1 x 550 mm - attached
CPU (8/4 pins)	1	1 x 600 mm - 8/4 pins attached
PCIe (8/6 pins)	4	2 x 550 + 150 mm - 8/6 pins attached
SATA	6	2 x 450 + 120 + 120 mm - attached
Peripheral	3	1 x 450 + 120 + 120 mm - attached
Floppy	1	1 x 120 mm - end connector of the peripheral cable
